BBS Individual
BBS LM-R Forged Wheels – All Sizes & Finishes
✔ Price per individual wheel
✔ Genuine BBS LM-R forged wheel
✔ Available in 19", 20" and 21"
✔ Choice of 4 original BBS finishes
✔ Fitment advice available before ordering
✔ Worldwide shipping from BaanVelgen
Wheel diameter
BBS LM-R specification
Finish
Worldwide shipping, shipping price is automatically calculated in the check-out
Request Special Price
Choose options
✔ Price per individual wheel
✔ Genuine BBS LM-R forged wheel
✔ Available in 19", 20" and 21"
✔ Choice of 4 original BBS finishes
✔ Fitment advice available before ordering
✔ Worldwide shipping from BaanVelgen
Wheel diameter
BBS LM-R specification
Finish
Worldwide shipping, shipping price is automatically calculated in the check-out
✔ Price per individual wheel
✔ Genuine BBS LM-R forged wheel
✔ Available in 19", 20" and 21"
✔ Choice of 4 original BBS finishes
✔ Fitment advice available before ordering
✔ Worldwide shipping from BaanVelgen
Wheel diameter
BBS LM-R specification
Finish
Worldwide shipping, shipping price is automatically calculated in the check-out

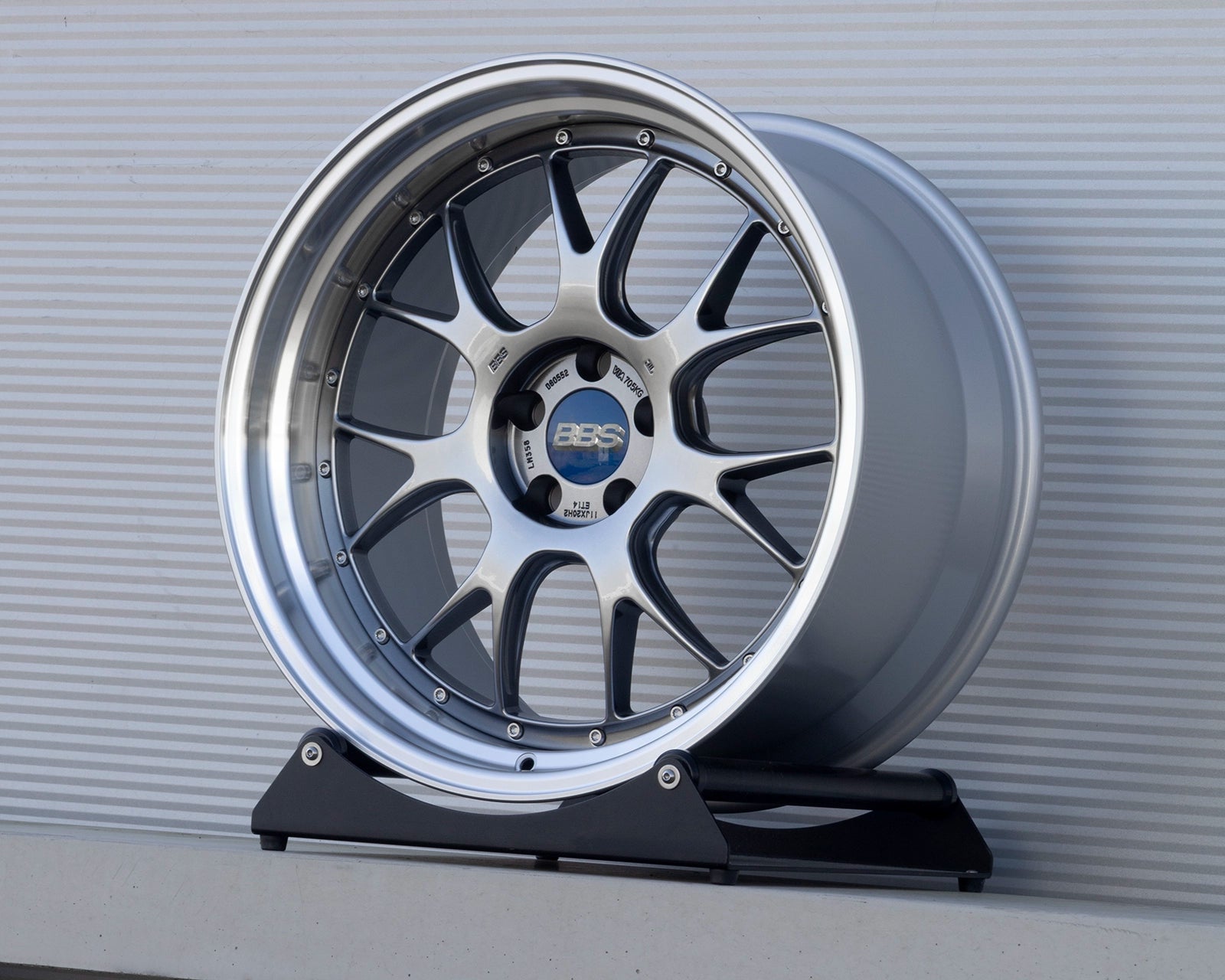

BBS LM-R forged wheels are genuine two-piece forged aluminium wheels developed as a performance-focused member of the BBS LM family. BBS states that the LM-R uses technology developed for its Porsche Carrera Cup racing wheel, combining low weight, strength and a distinctive open cross-spoke design.
This product contains the complete current BBS LM-R range: 35 official specifications in 19, 20 and 21 inch diameters, combined with four official finishes. The displayed price is for one individual wheel.
Unsure which BBS LM-R fits your car? Send BaanVelgen the vehicle make, model, model year, exact version, brake specification and current tyre sizes. We can verify the correct front and rear LM-R type numbers before you order.
Why choose the BBS LM-R?
- Genuine BBS two-piece forged aluminium construction
- Sport-focused design using technology developed for BBS Porsche Carrera Cup racing wheels
- Available in 19, 20 and 21 inch diameters
- Official 5x112, 5x114.3, 5x120, 5x130 and 5x132 specifications
- Exact BBS type number, width, offset, bolt pattern, bore or PFS and wheel weight shown for every option
- Four official BBS LM-R finish combinations
- Worldwide delivery and specialist fitment support from BaanVelgen
How to order the correct BBS LM-R wheel
- Select the wheel diameter.
- Select the exact BBS LM-R type number and specification.
- Select the required finish.
- Select the quantity. A complete staggered set normally uses two front and two rear wheels with different LM-R type numbers.
Diameter and bolt pattern alone do not confirm fitment. Offset, centre bore, brake clearance, vehicle load, tyre dimensions, suspension height and body clearance must also be checked. BBS also lists vehicle-specific restrictions for some PCD applications, so exact vehicle fitment should be verified before ordering.
For pre-configured four-wheel packages, view the BBS forged wheel collection. For fitment assistance, contact BaanVelgen.
Official BBS LM-R finishes
- Diamond Silver disk and Silver Diamond-cut rim (DS-SLD)
- Diamond Black disk and Silver Diamond-cut rim (DB-SLD)
- Diamond Silver disk and Black Bright Diamond-cut rim (DS-BKBD)
- Diamond Black disk and Black Bright Diamond-cut rim (DB-BKBD)
Complete BBS LM-R size and specification chart
PFS means BBS Permanent Fitment System. The technical overview below is intended for specification comparison; final vehicle fitment should always be verified.
View all 35 official BBS LM-R specifications
19-inch BBS LM-R wheels
| BBS type | Size | Offset | Bolt pattern | Bore / PFS | Weight | Remark |
|---|---|---|---|---|---|---|
| LM300 | 19x8.5 | ET38 | 5x114.3 | PFS | 10.7 kg | — |
| LM302 | 19x8.5 | ET43 | 5x114.3 | PFS | 10.9 kg | — |
| LM307 | 19x8.5 | ET25 | 5x114.3 | PFS | 10.8 kg | — |
| LM309 | 19x8.5 | ET55 | 5x130 | 71.6 | 11.0 kg | Use the OEM bolts or nuts. |
| LM324 | 19x8.5 | ET36 | 5x114.3 | PFS | 10.8 kg | — |
| LM364 | 19x8.5 | ET32 | 5x120 | PFS | 10.8 kg | — |
| LM365 | 19x8.5 | ET28 | 5x120 | PFS | 10.8 kg | — |
| LM301 | 19x9.5 | ET38 | 5x114.3 | PFS | 10.9 kg | — |
| LM303 | 19x9.5 | ET45 | 5x114.3 | PFS | 11.0 kg | — |
| LM308 | 19x9.5 | ET25 | 5x114.3 | PFS | 11.1 kg | — |
| LM311 | 19x9.5 | ET40 | 5x130 | 71.6 | 11.1 kg | Use the OEM bolts or nuts. |
| LM363 | 19x9.5 | ET25 | 5x120 | PFS | 11.0 kg | — |
| LM366 | 19x9.5 | ET35 | 5x120 | PFS | 10.9 kg | — |
| LM367 | 19x10.0 | ET20 | 5x120 | PFS | 11.3 kg | — |
| LM356 | 19x10.5 | ET15 | 5x114.3 | PFS | 11.6 kg | — |
| LM310 | 19x11.0 | ET63 | 5x130 | 71.6 | 11.6 kg | Use the OEM bolts or nuts. |
20-inch BBS LM-R wheels
| BBS type | Size | Offset | Bolt pattern | Bore / PFS | Weight | Remark |
|---|---|---|---|---|---|---|
| LM318 | 20x8.5 | ET43 | 5x114.3 | PFS | 11.7 kg | — |
| LM368 | 20x8.5 | ET32 | 5x120 | PFS | 11.1 kg | — |
| LM370 | 20x9.0 | ET25 | 5x120 | 72.5 | 11.7 kg | — |
| LM386 | 20x9.0 | ET40 | 5x130 | 71.6 | 11.6 kg | Use the OEM bolts. |
| LM329 | 20x9.5 | ET40 | 5x114.3 | 66 | 11.9 kg | Anti-slip paint applied on the tyre bead flange. |
| LM369 | 20x9.5 | ET23 | 5x120 | PFS | 11.7 kg | — |
| LM382 | 20x10.0 | ET12 | 5x112 | PFS | 12.2 kg | — |
| LM371 | 20x10.5 | ET35 | 5x120 | 72.5 | 12.2 kg | — |
| LM330 | 20x11.0 | ET20 | 5x114.3 | 66 | 12.2 kg | Anti-slip paint applied on the tyre bead flange. |
| LM372 | 20x11.0 | ET40 | 5x120 | PFS | 12.3 kg | — |
| LM383 | 20x11.0 | ET14 | 5x112 | PFS | 12.6 kg | — |
21-inch BBS LM-R wheels
| BBS type | Size | Offset | Bolt pattern | Bore / PFS | Weight | Remark |
|---|---|---|---|---|---|---|
| LM360 | 21x8.5 | ET14 | 5x120 | PFS | 12.8 kg | — |
| LM349 | 21x9.0 | ET32 | 5x114.3 | PFS | 12.8 kg | — |
| LM359 | 21x9.0 | ET32 | 5x120 | PFS | 12.6 kg | — |
| LM361 | 21x9.5 | ET14 | 5x120 | PFS | 13.0 kg | — |
| LM362 | 21x9.5 | ET28 | 5x120 | PFS | 12.8 kg | — |
| LM384 | 21x10.5 | ET17 | 5x132 | 66.5 | 13.8 kg | Maximum load: 835 kg per wheel. |
| LM385 | 21x11.0 | ET18 | 5x132 | 66.5 | 13.8 kg | Maximum load: 835 kg per wheel. |
| LM387 | 21x12.0 | ET72 | 5x130 | 71.6 | 14.0 kg | Use the OEM bolts. |
BBS LM-R frequently asked questions
Are BBS LM-R wheels forged?
Yes. The BBS LM-R is a genuine two-piece forged aluminium wheel.
What is the difference between BBS LM and BBS LM-R?
The LM is the classic Le Mans-inspired BBS design, while the LM-R is the more sport-focused interpretation. BBS specifically links the LM-R to technology developed for its Porsche Carrera Cup racing wheel.
Is the displayed price for one wheel or a complete set?
The displayed price is for one individual wheel. A complete set normally requires four wheels, and staggered applications often use different front and rear BBS LM-R type numbers.
What is included with a BBS LM-R wheel?
BBS lists the centre emblem and air valve as standard attachments. Bolts or nuts are supplied where applicable; specifications that require the vehicle's original bolts or nuts are identified in the chart. A hub ring is supplied for PFS specifications.
What does PFS mean?
PFS means Permanent Fitment System, the BBS hub-ring system used on applicable wheel specifications.
Can BaanVelgen verify BBS LM-R fitment?
Yes. Send the vehicle make, model, year, exact version, brake setup and tyre sizes. BaanVelgen can recommend the correct front and rear LM-R references and identify relevant fitment considerations.
Does BaanVelgen ship BBS LM-R wheels worldwide?
Yes. BaanVelgen supplies customers worldwide. Outbound delivery costs are calculated at checkout or confirmed in a quotation.
Why order from BaanVelgen?
BaanVelgen specialises in premium wheels and performance parts and combines worldwide supply with detailed, vehicle-specific fitment advice. The goal is to select the correct BBS LM-R type numbers for the car rather than relying on wheel diameter and bolt pattern alone.
