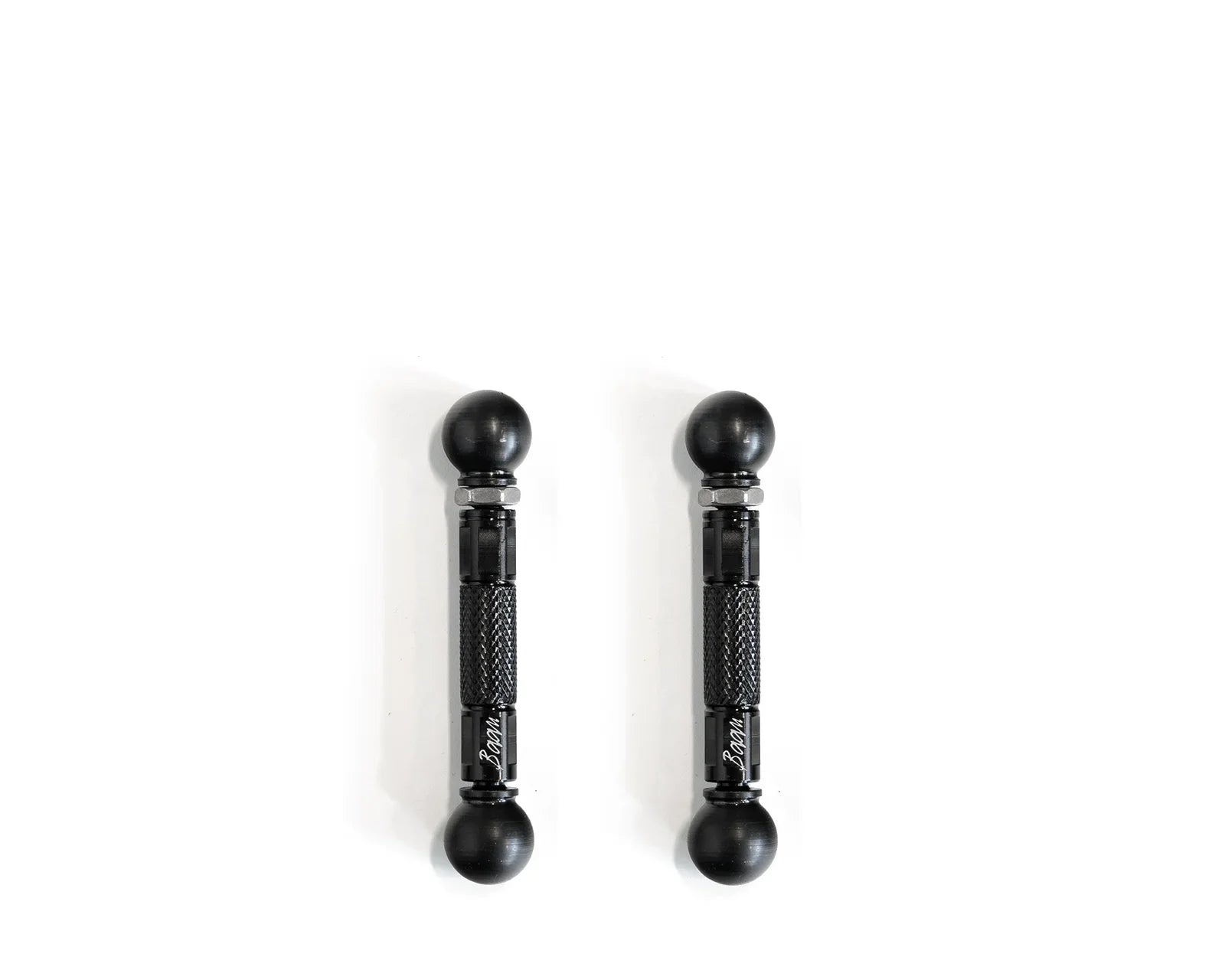

BAAN Adjustable Front Lift Sensor Links for Lamborghini Revuelto are developed for the Lamborghini Revuelto after the vehicle has been lowered with a compatible suspension solution.
Lowering changes the mechanical relationship between the front axle and the factory lift-system sensors. The adjustable BAAN links are used to correct the front lift sensor geometry after suspension lowering and help prevent lift-system warnings.
Why the Revuelto front lift system needs corrected sensor geometry
The front lift system expects its sensors to operate within a defined mechanical range. A lower suspension position can move that reference outside the expected window, which may result in a lift-system warning or inconsistent lift operation. These links do not lower the vehicle themselves; they allow the sensor position to be recalibrated mechanically after lowering.
Key advantages
- Revuelto-specific application: designed for the Lamborghini Revuelto front lift sensor layout.
- On-car adjustment: left-hand and right-hand threads allow the link length to be fine-tuned while installed.
- Direct factory connection: stainless-steel sockets attach to the original sensor ball studs.
- Secure retention: locking nuts and dual metal safety-retaining clips secure the final setting.
- No software coding: correction is made through mechanical sensor geometry.
- Reversible: the factory links can be reinstalled.
Technical specifications
| Brand | BAAN |
|---|---|
| Product type | Front lift sensor correction after lowering |
| Vehicle | Lamborghini Revuelto |
| Compatible system | factory front lift sensor system |
| Position | Front axle sensor links |
| Central adjuster | Precision-machined aluminium with anti-slip knurling |
| Link ends and sockets | Corrosion-resistant stainless steel |
| Thread design | Opposing left-hand and right-hand threads |
| Retention | Mechanical locking nuts and dual metal safety-retaining clips |
| Dimensional inspection | Critical dimensions inspected using measuring equipment with a resolution of 0.001 mm |
| Developed by | BaanVelgen in Rotterdam, the Netherlands |
| Production | Precision-manufactured in Taiwan to BaanVelgen specifications |
| Coding required | No |
How the correction links work
The factory front lift sensors read suspension position through short mechanical links. After the suspension has been lowered, the BAAN links replace the fixed originals and allow the sensor reference to be returned to the appropriate operating position. The front lift system itself remains factory-controlled.
Vehicle compatibility
This product is intended for the following application when equipped with factory front lift sensor system:
- Revuelto
Suspension specifications can vary by market, model year and optional equipment. Send BaanVelgen the VIN when confirmation is required before ordering.
What is included?
- Two adjustable BAAN front lift sensor links
- Stainless-steel sockets and link ends
- Locking nuts and safety-retaining clips
- Installation and baseline adjustment guidance
Installation and verification
Installation normally takes approximately 30 minutes for an experienced technician. The vehicle should be positioned safely, the original links removed without loading the sensor arms, and the new links adjusted evenly. Before driving, test the front lift system through a complete operating cycle and confirm that no warning is shown.
Frequently asked questions
Do these links lower the Lamborghini Revuelto?
No. Springs or another compatible suspension modification determine the vehicle height. These links correct the front lift sensor geometry after lowering.
Can they be adjusted while installed?
Yes. The opposing thread directions allow the central adjuster to be rotated while both ends remain connected.
Is coding necessary?
No. The correction is mechanical and does not require software changes.
Does the factory front lift button continue to work?
The original lift controls remain in use. The links are intended to restore the mechanical sensor reference required by the factory system.
Can the original links be refitted?
Yes. The modification is reversible.
Order BAAN Revuelto front lift sensor links
BaanVelgen provides worldwide shipping and direct fitment support. Contact us with the vehicle and suspension specification when the lowering setup is still being planned.
