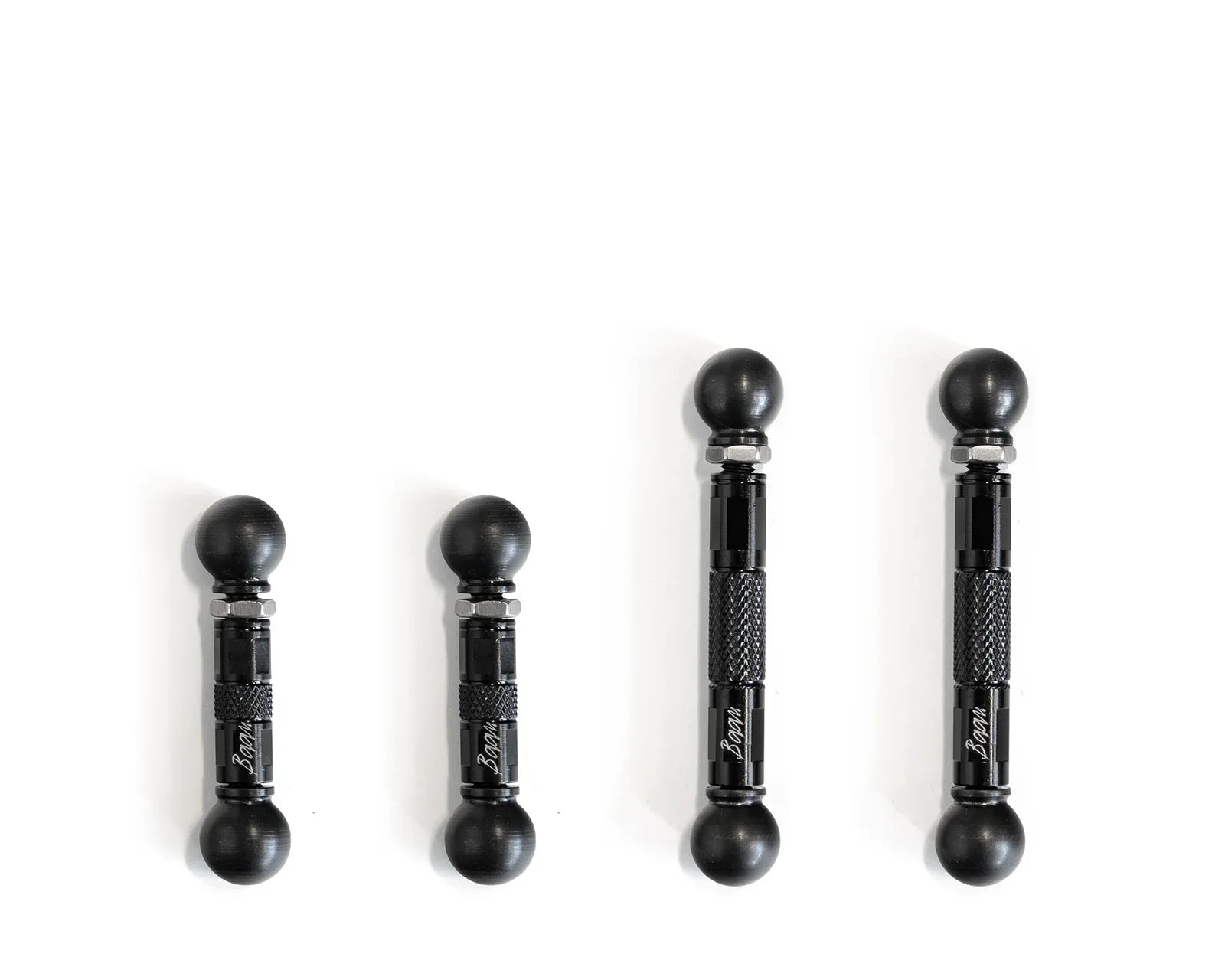

BAAN Air Suspension Lowering Links for Land Rover Defender L663
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
Request Special Price
Choose options
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
BAAN Air Suspension Lowering Links for Land Rover Defender L663 are a model-specific mechanical lowering solution for the Land Rover Defender L663 equipped with factory electronic air suspension.
Rather than replacing the factory suspension, the Land Rover Defender L663 can be lowered by changing the reference position of its ride-height sensors. The goal is to create a more road-oriented Defender stance for wheel-focused builds while retaining the original air controls.
A lower stance for a modern off-road SUV
Because the adjustment remains mechanical, the installation does not introduce an additional control unit into the vehicle wiring. This is especially useful on a modern off-road SUV where owners want the visual result without changing the original suspension architecture.
Precision adjustment rather than a fixed drop
| Usable front range | 0–50 mm lower, approximately |
|---|---|
| Usable rear range | 0–50 mm lower, approximately |
A conservative OEM+ setting normally leaves more suspension travel and ground clearance than the maximum position. Always verify tyre, underbody and sensor-link clearance.
Mechanical sensor geometry explained
At each sensor location, the original fixed linkage is exchanged for an adjustable one. A carefully measured change in length produces a corresponding change in static body position. Reinstalling the factory links restores the original mechanical reference.
Construction quality
- Developer
- BaanVelgen, Rotterdam, the Netherlands
- Manufacturing
- Taiwan, to BaanVelgen specifications
- Adjuster material
- Precision-machined aluminium
- Connection material
- Corrosion-resistant stainless steel
- Thread arrangement
- Left-hand and right-hand threads in one turnbuckle-style assembly
- Retention method
- Lock nuts plus dual metal safety clips
- Electronic modification
- None required
Key functions
- Adjustable mechanical ride-height control for the front and rear axles.
- Turnbuckle-style centre sections that can be adjusted while the sockets remain connected.
- Stainless-steel ball-joint sockets intended for exposed suspension locations.
- Mechanical locking on both sides of each centre adjuster.
- Retention of the factory self-levelling interface and selectable suspension controls.
Application details
This product is intended for the following application when equipped with factory electronic air suspension:
- Defender L663
Suspension specifications can vary by market, model year and optional equipment. Send BaanVelgen the VIN when confirmation is required before ordering.
Package contents
- Front axle adjustable sensor links
- Rear axle adjustable sensor links
- Preassembled connection sockets and safety clips
- Adjustment and installation information
After installation
Fitment is mechanically straightforward, but careful measurement is essential. An experienced workshop should allow 60–90 minutes for installation, adjustment and a final inspection of the clips, clearances and sensor-arm movement.
The final setup should be checked in the normal road mode and with normal tyre pressures. Reinspect the lock nuts and safety clips after the first period of use.
Owner questions
Is this a fixed lowering kit?
No. The final height can be fine-tuned through the threaded centre adjusters.
Can the car still self-level?
The factory self-levelling system remains in use. The links simply establish a lower mechanical reference position.
Will lowering change the ride?
A modest change generally retains the character of the factory system, but a larger drop reduces available suspension travel and may make the vehicle feel firmer.
Can a workshop install the kit?
Yes. The kit can be installed by a qualified workshop using normal hand tools and the supplied baseline guidance.
Is fitment reversible?
Yes. No permanent change to the suspension electronics is required, and the original links can be refitted.
Direct BAAN supply
BaanVelgen supplies the Defender L663 kit worldwide and provides fitment support before and after purchase. The product is developed in Rotterdam and precision-manufactured in Taiwan to BaanVelgen specifications.
