BAAN AIRMATIC Lowering Links for Mercedes-Benz E-Class Coupé C238
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
Request Special Price
Choose options
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
BAAN AIRMATIC Lowering Links for Mercedes-Benz E-Class Coupé C238 are a model-specific mechanical lowering solution for the Mercedes-Benz E-Class Coupé C238 equipped with factory AIRMATIC air suspension.
The Mercedes-Benz E-Class Coupé C238 can carry a noticeably more resolved stance when the wheel arch gap is reduced with control. BAAN developed this vehicle-specific solution to create a balanced, elegant drop that complements the two-door body without replacing the factory dampers.
Because the adjustment remains mechanical, the installation does not introduce an additional control unit into the vehicle wiring. This is especially useful on a executive coupé where owners want the visual result without changing the original suspension architecture.
Lowering without replacing the factory suspension
The Mercedes-Benz E-Class Coupé C238 measures suspension position through links between the axle or control arm and its height sensors. Changing the effective length of those links changes the mechanical reference supplied to the controller. The existing compressor, air springs, dampers and user controls remain in service.
Adjustment window
| Front adjustment | Close to factory height through approximately 50 mm lower |
|---|---|
| Rear adjustment | Close to factory height through approximately 50 mm lower |
Use the stated range as an adjustment envelope rather than a guaranteed measured drop. The final result on the E-Class Coupé C238 depends on calibration, vehicle load, tyre pressure and wheel-and-tyre dimensions.
Reasons to choose the BAAN set
- Vehicle-specific specification: supplied as a complete front-and-rear set for this application.
- On-car fine adjustment: the opposing thread directions allow the centre adjuster to be turned while installed.
- Underbody-ready materials: aluminium adjusters are paired with corrosion-resistant stainless-steel ends and sockets.
- Secure final setting: locking nuts and dual metal retaining clips provide positive mechanical retention.
- No coding: no software changes or electronic suspension controller are required.
Materials, threads and retention
| Application | Mercedes-Benz E-Class Coupé C238 |
|---|---|
| Suspension | factory AIRMATIC air suspension |
| Centre body | Precision-machined aluminium with anti-slip knurling |
| Ends and sockets | Corrosion-resistant stainless steel |
| Adjustment | Opposing left-hand and right-hand threads |
| Locking | Two mechanical lock nuts per link |
| Socket retention | Dual metal safety-retaining clips |
| Inspection | Critical dimensions checked with 0.001 mm-resolution measuring equipment |
| Origin | Developed in Rotterdam; manufactured in Taiwan to BaanVelgen specifications |
Suitable vehicles
This product is intended for the following application when equipped with factory AIRMATIC air suspension:
- E-Class Coupé C238
Suspension specifications can vary by market, model year and optional equipment. Send BaanVelgen the VIN when confirmation is required before ordering.
Set composition

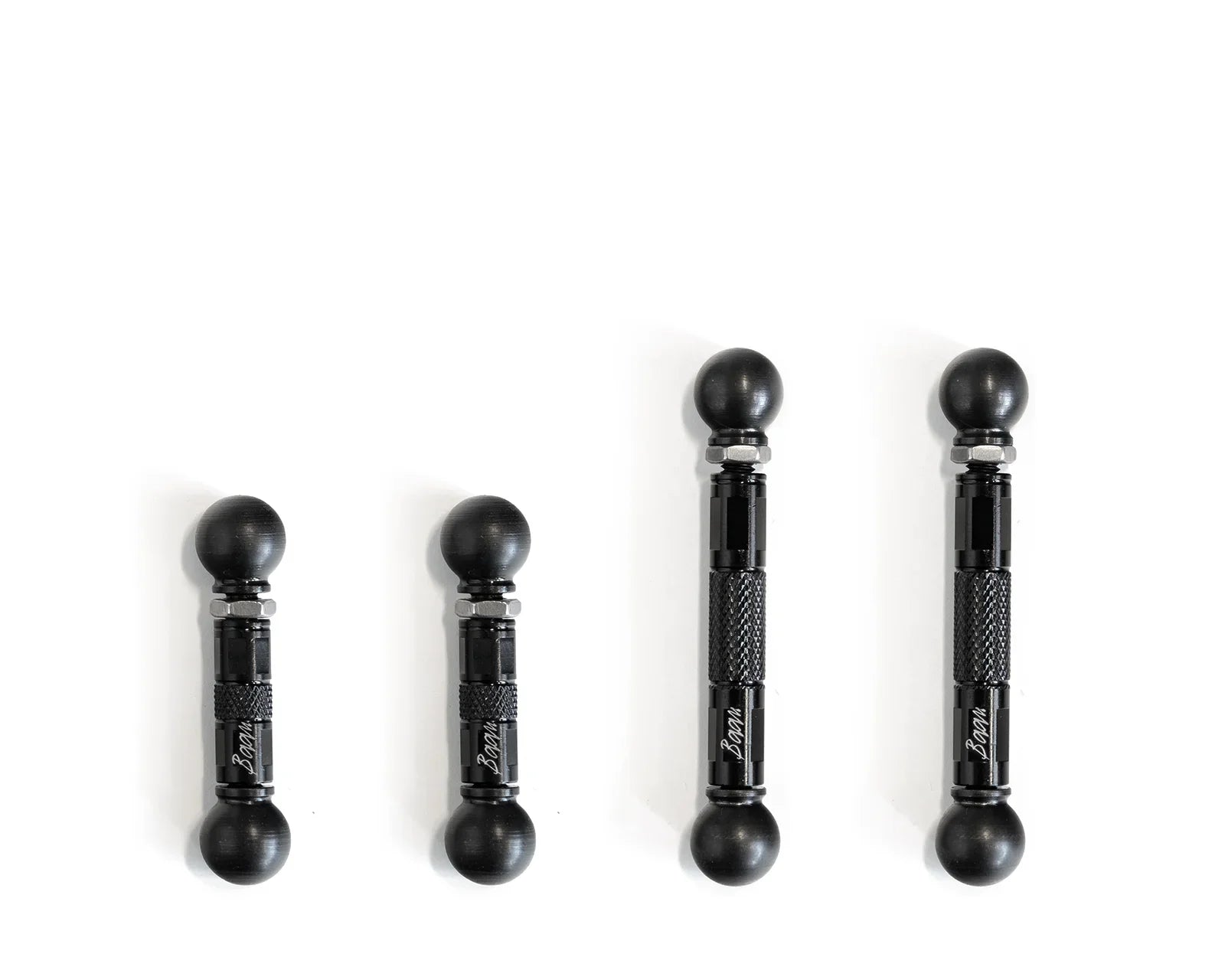

- Complete BAAN lowering-link set for the front and rear axles
- Aluminium threaded centre adjusters
- Stainless-steel ends and ball-joint sockets
- Lock nuts and dual safety-retaining clips
- Vehicle-specific baseline and installation guidance
Measurement and installation notes
Allow approximately 60–90 minutes for installation and initial setup. After the first road test, remeasure the vehicle on a flat surface and confirm that the selected height is even from left to right.
Once the vehicle has completed a settling drive, recheck all four measurements and arrange a professional alignment. A significant ride-height change can alter toe, camber, tyre clearance and available suspension travel.
Answers for E-Class Coupé C238 owners
How much can the vehicle be lowered?
The kit provides an adjustment range from close to the factory position to approximately 50 mm lower at the front and rear. The usable setting depends on clearance, calibration and road conditions.
Are the links suitable for winter use?
The link ends and sockets are made from corrosion-resistant stainless steel. Periodic cleaning and inspection remain advisable after heavy salt exposure.
Do I need an electronic controller?
No. The adjustable links change the sensor reference directly and do not add a controller to the suspension wiring.
Is the adjustment front and rear independent?
Yes. Front and rear settings can be selected separately to achieve the required visual balance.
What should be checked after installation?
Confirm even ride height, sensor-link clearance, retaining-clip engagement, tyre clearance and wheel alignment.
Purchase from BaanVelgen
BaanVelgen supplies the E-Class Coupé C238 kit worldwide and provides fitment support before and after purchase. The product is developed in Rotterdam and precision-manufactured in Taiwan to BaanVelgen specifications.
