BAAN AIRMATIC Lowering Links for Mercedes-Benz EQS SUV X296
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
Request Special Price
Choose options
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty

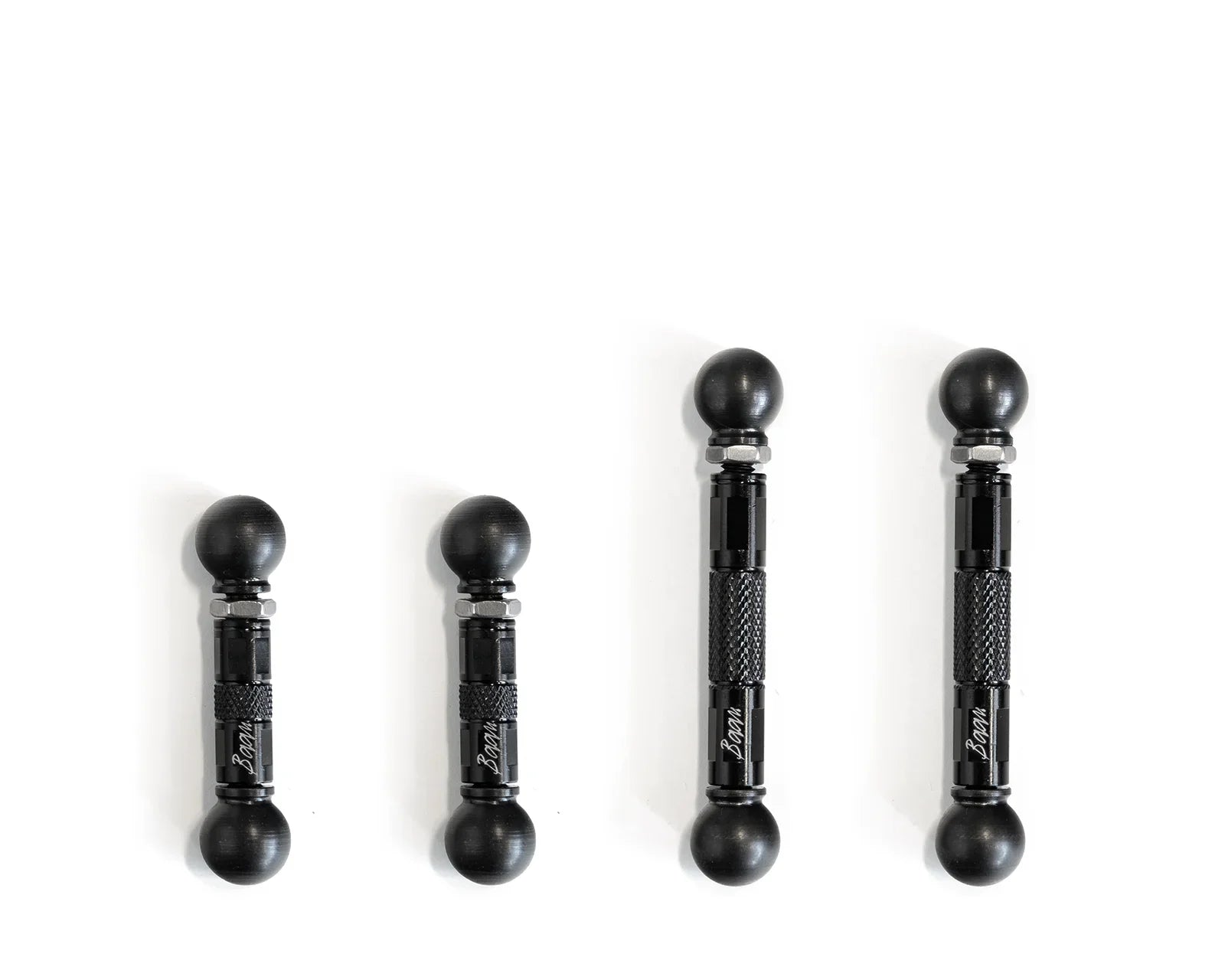

BAAN AIRMATIC Lowering Links for Mercedes-Benz EQS SUV X296 are a model-specific mechanical lowering solution for the Mercedes-Benz EQS SUV X296 equipped with factory AIRMATIC air suspension.
BAAN Lowering Links provide the Mercedes-Benz EQS SUV X296 with a direct mechanical route to a lower static position. They are particularly suitable when the intention is to make the large electric platform sit more cohesively over its wheels without modifying the vehicle software.
By keeping the modification at the sensor-link level, the BAAN kit remains straightforward to inspect, adjust and reverse. It also avoids the need to splice into the suspension electronics.
Creating the correct wheel-to-arch balance
| Usable front range | 0–50 mm lower, approximately |
|---|---|
| Usable rear range | 0–50 mm lower, approximately |
A conservative OEM+ setting normally leaves more suspension travel and ground clearance than the maximum position. Always verify tyre, underbody and sensor-link clearance.
Why use a mechanical sensor-link solution?
At each sensor location, the original fixed linkage is exchanged for an adjustable one. A carefully measured change in length produces a corresponding change in static body position. Reinstalling the factory links restores the original mechanical reference.
Product highlights
- Adjustable mechanical ride-height control for the front and rear axles.
- Turnbuckle-style centre sections that can be adjusted while the sockets remain connected.
- Stainless-steel ball-joint sockets intended for exposed suspension locations.
- Mechanical locking on both sides of each centre adjuster.
- Retention of the factory self-levelling interface and selectable suspension controls.
Technical construction
- Developer
- BaanVelgen, Rotterdam, the Netherlands
- Manufacturing
- Taiwan, to BaanVelgen specifications
- Adjuster material
- Precision-machined aluminium
- Connection material
- Corrosion-resistant stainless steel
- Thread arrangement
- Left-hand and right-hand threads in one turnbuckle-style assembly
- Retention method
- Lock nuts plus dual metal safety clips
- Electronic modification
- None required
Vehicle and suspension compatibility
This product is intended for the following application when equipped with factory AIRMATIC air suspension:
- EQS SUV X296
Suspension specifications can vary by market, model year and optional equipment. Send BaanVelgen the VIN when confirmation is required before ordering.
Complete package
- Front axle adjustable sensor links
- Rear axle adjustable sensor links
- Preassembled connection sockets and safety clips
- Adjustment and installation information
Installation, settling and alignment
A professional or experienced installer can normally fit the set in about 60–90 minutes. Work on a level surface, follow the vehicle manufacturer’s air-suspension lifting procedure and avoid applying leverage to the original plastic sensor arms.
The final setup should be checked in the normal road mode and with normal tyre pressures. Reinspect the lock nuts and safety clips after the first period of use.
EQS SUV X296 lowering-link FAQ
Is this a fixed lowering kit?
No. The final height can be fine-tuned through the threaded centre adjusters.
Can the car still self-level?
The factory self-levelling system remains in use. The links simply establish a lower mechanical reference position.
Will lowering change the ride?
A modest change generally retains the character of the factory system, but a larger drop reduces available suspension travel and may make the vehicle feel firmer.
Can a workshop install the kit?
Yes. The kit can be installed by a qualified workshop using normal hand tools and the supplied baseline guidance.
Is fitment reversible?
Yes. No permanent change to the suspension electronics is required, and the original links can be refitted.
BaanVelgen supply and support
BaanVelgen supplies the EQS SUV X296 kit worldwide and provides fitment support before and after purchase. The product is developed in Rotterdam and precision-manufactured in Taiwan to BaanVelgen specifications.
