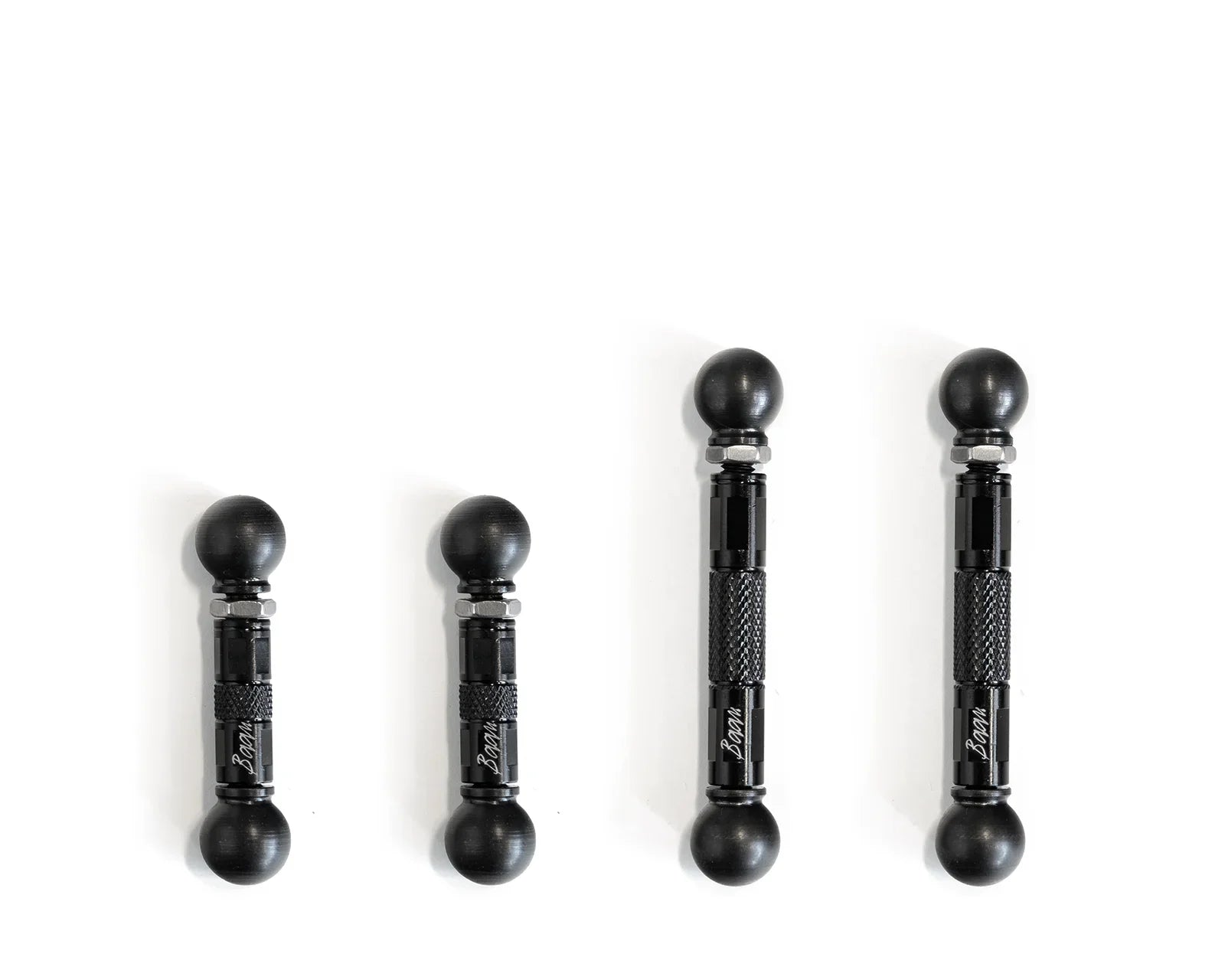

BAAN AIRMATIC Lowering Links for Mercedes-Benz GLC Coupé C253 are a model-specific mechanical lowering solution for the Mercedes-Benz GLC Coupé C253 equipped with factory AIRMATIC air suspension.
The Mercedes-Benz GLC Coupé C253 combines a compact coupé SUV body with an adjustable factory suspension system. BAAN Lowering Links let the owner match the fastback profile with a lower wheel-arch relationship while avoiding an electronic module.
For the Mercedes-Benz GLC Coupé C253, the most convincing result is usually not the lowest possible setting but a measured position that preserves clearance and suspension travel. The adjustable construction supports that approach.
Why this kit suits the GLC Coupé C253
- Vehicle-specific specification: supplied as a complete front-and-rear set for this application.
- On-car fine adjustment: the opposing thread directions allow the centre adjuster to be turned while installed.
- Underbody-ready materials: aluminium adjusters are paired with corrosion-resistant stainless-steel ends and sockets.
- Secure final setting: locking nuts and dual metal retaining clips provide positive mechanical retention.
- No coding: no software changes or electronic suspension controller are required.
Available adjustment range
| Front adjustment | Close to factory height through approximately 50 mm lower |
|---|---|
| Rear adjustment | Close to factory height through approximately 50 mm lower |
Use the stated range as an adjustment envelope rather than a guaranteed measured drop. The final result on the GLC Coupé C253 depends on calibration, vehicle load, tyre pressure and wheel-and-tyre dimensions.
Construction and materials
| Application | Mercedes-Benz GLC Coupé C253 |
|---|---|
| Suspension | factory AIRMATIC air suspension |
| Centre body | Precision-machined aluminium with anti-slip knurling |
| Ends and sockets | Corrosion-resistant stainless steel |
| Adjustment | Opposing left-hand and right-hand threads |
| Locking | Two mechanical lock nuts per link |
| Socket retention | Dual metal safety-retaining clips |
| Inspection | Critical dimensions checked with 0.001 mm-resolution measuring equipment |
| Origin | Developed in Rotterdam; manufactured in Taiwan to BaanVelgen specifications |
How the factory sensor system is used
The Mercedes-Benz GLC Coupé C253 measures suspension position through links between the axle or control arm and its height sensors. Changing the effective length of those links changes the mechanical reference supplied to the controller. The existing compressor, air springs, dampers and user controls remain in service.
Confirmed application
This product is intended for the following application when equipped with factory AIRMATIC air suspension:
- GLC Coupé C253
Suspension specifications can vary by market, model year and optional equipment. Send BaanVelgen the VIN when confirmation is required before ordering.
Contents of the set
- Complete BAAN lowering-link set for the front and rear axles
- Aluminium threaded centre adjusters
- Stainless-steel ends and ball-joint sockets
- Lock nuts and dual safety-retaining clips
- Vehicle-specific baseline and installation guidance
Installation and final setup
Fitment is mechanically straightforward, but careful measurement is essential. An experienced workshop should allow 60–90 minutes for installation, adjustment and a final inspection of the clips, clearances and sensor-arm movement.
Once the vehicle has completed a settling drive, recheck all four measurements and arrange a professional alignment. A significant ride-height change can alter toe, camber, tyre clearance and available suspension travel.
Questions about GLC Coupé C253 lowering links
Can the height be adjusted without removing the links?
Yes. Opposing left-hand and right-hand threads allow the centre adjuster to be rotated while both sockets remain connected to the vehicle.
Does the kit require coding?
No. The ride-height change is created mechanically and does not require software coding or an electronic lowering module.
Will the original suspension modes remain available?
Yes. The factory controls and selectable suspension modes remain available, although the vehicle operates around the newly selected static height.
Should the alignment be checked?
Yes. A wheel-alignment check is recommended after the vehicle has settled, particularly with a larger drop or non-standard wheels.
Can the original height be restored?
Yes. The links can be readjusted and the original factory links can also be reinstalled.
Order from BaanVelgen
BaanVelgen supplies the GLC Coupé C253 kit worldwide and provides fitment support before and after purchase. The product is developed in Rotterdam and precision-manufactured in Taiwan to BaanVelgen specifications.
