BAAN AIRMATIC Lowering Links for Mercedes-Maybach S-Class Z223

BAAN AIRMATIC Lowering Links for Mercedes-Maybach S-Class Z223 are a model-specific mechanical lowering solution for the Mercedes-Maybach S-Class Z223 equipped with factory AIRMATIC air suspension.

Wheel fitment on the Mercedes-Maybach S-Class Z223 looks most coherent when the body sits at the correct visual height. This mechanical BAAN solution allows you to set a subtle bespoke ride height that complements the Z223’s long body and premium wheel specifications.

This solution is particularly relevant to vehicles that retain multiple factory suspension modes. The links establish a lower reference position while the original controls remain available for normal use.

Five core features

• Model-specific starting dimensions rather than a universal one-size-fits-all link.
• Independent axle setup for a balanced front-to-rear stance.
• Precision-machined construction with critical dimensions checked using 0.001 mm-resolution measuring equipment.
• Direct sensor-ball fitment with stainless-steel sockets and safety-retaining clips.
• Mechanical, reversible operation without adding a signal-interception module.

How much adjustment is available?

Ride height is continuously adjustable rather than limited to a fixed drop. The normal working range is from close to the original setting to approximately 50 mm lower on the front and rear axles.

The selected stance should be based on real measurements after the air suspension has settled in its normal road mode.

Direct interaction with the factory height sensors

The product works at the point where suspension movement is translated into sensor movement. By recalibrating that relationship mechanically, the Maybach S-Class Z223 can sit lower while continuing to use its standard suspension interface and self-levelling logic.

Detailed product specification

Production dimensions are checked with precision equipment with a display resolution of 0.001 mm.

Before placing an order

This product is intended for the following application when equipped with factory AIRMATIC air suspension:

• Maybach S-Class Z223

Suspension specifications can vary by market, model year and optional equipment. Send BaanVelgen the VIN when confirmation is required before ordering.

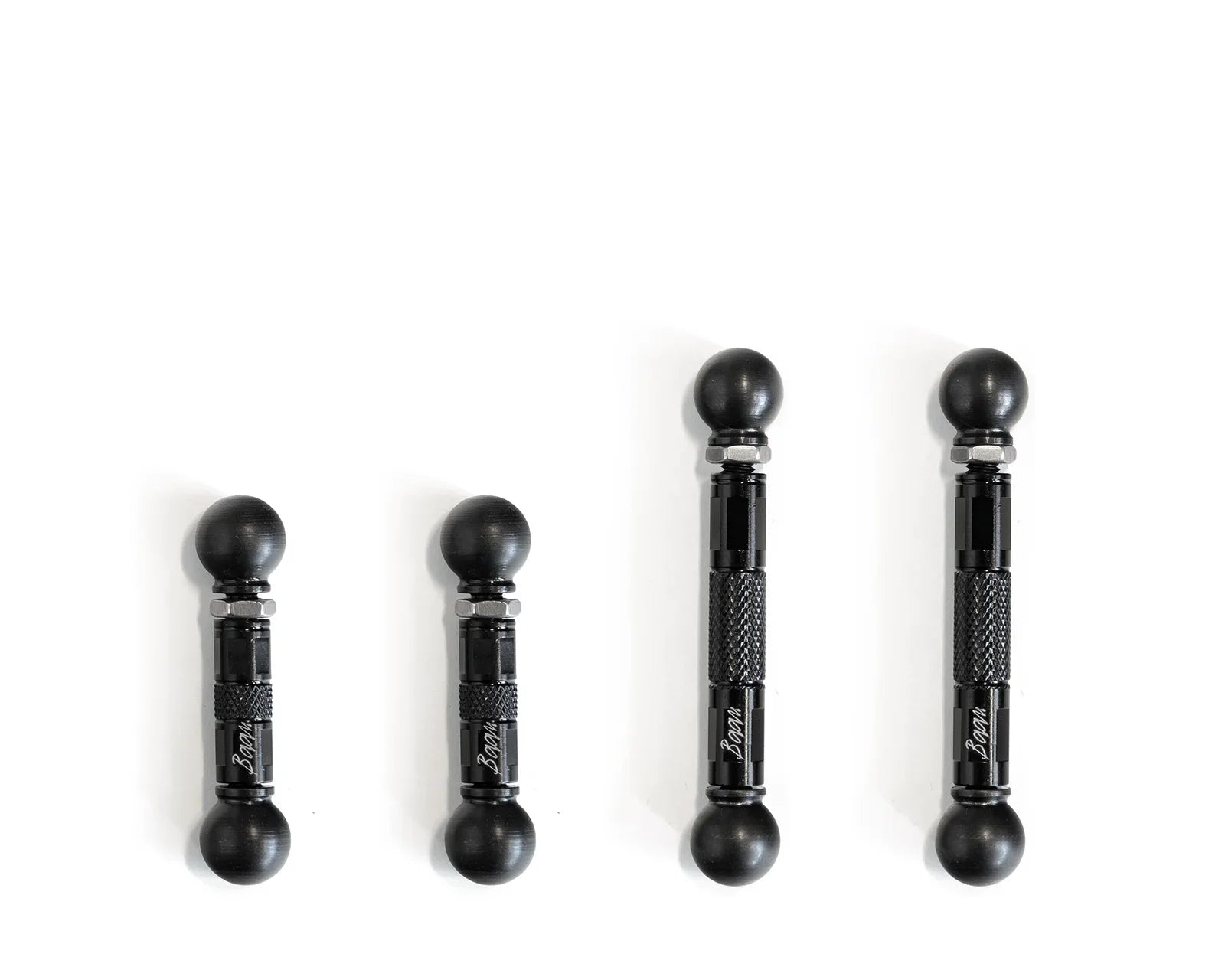

Complete set information

You receive a complete model-specific kit for both axles. No separate electronic controller is needed. Reuse of the original sensor balls is part of the direct-fit installation.

Installation and inspection

Fitment is mechanically straightforward, but careful measurement is essential. An experienced workshop should allow 60–90 minutes for installation, adjustment and a final inspection of the clips, clearances and sensor-arm movement.

For vehicles with large aftermarket wheels, also check inner tyre clearance at steering lock and under compression before selecting the final height.

Frequently asked questions for the Maybach S-Class Z223

Can the height be adjusted without removing the links?

Yes. Opposing left-hand and right-hand threads allow the centre adjuster to be rotated while both sockets remain connected to the vehicle.

Does the kit require coding?

No. The ride-height change is created mechanically and does not require software coding or an electronic lowering module.

Will the original suspension modes remain available?

Yes. The factory controls and selectable suspension modes remain available, although the vehicle operates around the newly selected static height.

Should the alignment be checked?

Yes. A wheel-alignment check is recommended after the vehicle has settled, particularly with a larger drop or non-standard wheels.

Can the original height be restored?

Yes. The links can be readjusted and the original factory links can also be reinstalled.

Global shipping from BaanVelgen

BaanVelgen supplies the Maybach S-Class Z223 kit worldwide and provides fitment support before and after purchase. The product is developed in Rotterdam and precision-manufactured in Taiwan to BaanVelgen specifications.
