BAAN Air Suspension Lowering Links for Rolls-Royce Ghost RR04
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
Request Special Price
Choose options
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
✔ Complete vehicle-specific set
✔ Adjustable on the car using left- and right-hand threads
✔ Precision-machined aluminium adjusters with stainless-steel ends
✔ No software coding or electronic lowering module required
✔ Keeps the factory air-suspension controls fully operational
Worldwide shipping, calculated automatically at checkout
5-year Baan product warranty
BAAN Air Suspension Lowering Links for Rolls-Royce Ghost RR04 are a model-specific mechanical lowering solution for the Rolls-Royce Ghost RR04 equipped with factory air suspension.
For a wheel-focused build, the standard ride height of the Rolls-Royce Ghost RR04 can be the final detail preventing the setup from looking complete. This kit is created to update the RR04’s road presence with less wheel gap and a cleaner horizontal stance.
The vehicle-specific starting dimensions are intended to simplify installation. Final measurements should still be taken at all four wheel arches because production tolerances and vehicle equipment can influence the measured result.
Creating the correct wheel-to-arch balance
| Usable front range | 0–50 mm lower, approximately |
|---|---|
| Usable rear range | 0–50 mm lower, approximately |
A conservative OEM+ setting normally leaves more suspension travel and ground clearance than the maximum position. Always verify tyre, underbody and sensor-link clearance.
Why use a mechanical sensor-link solution?
At each sensor location, the original fixed linkage is exchanged for an adjustable one. A carefully measured change in length produces a corresponding change in static body position. Reinstalling the factory links restores the original mechanical reference.
Product highlights
- Adjustable mechanical ride-height control for the front and rear axles.
- Turnbuckle-style centre sections that can be adjusted while the sockets remain connected.
- Stainless-steel ball-joint sockets intended for exposed suspension locations.
- Mechanical locking on both sides of each centre adjuster.
- Retention of the factory self-levelling interface and selectable suspension controls.
Technical construction
- Developer
- BaanVelgen, Rotterdam, the Netherlands
- Manufacturing
- Taiwan, to BaanVelgen specifications
- Adjuster material
- Precision-machined aluminium
- Connection material
- Corrosion-resistant stainless steel
- Thread arrangement
- Left-hand and right-hand threads in one turnbuckle-style assembly
- Retention method
- Lock nuts plus dual metal safety clips
- Electronic modification
- None required
Vehicle and suspension compatibility
This product is intended for the following application when equipped with factory air suspension:
- Ghost RR04
Suspension specifications can vary by market, model year and optional equipment. Send BaanVelgen the VIN when confirmation is required before ordering.
Complete package

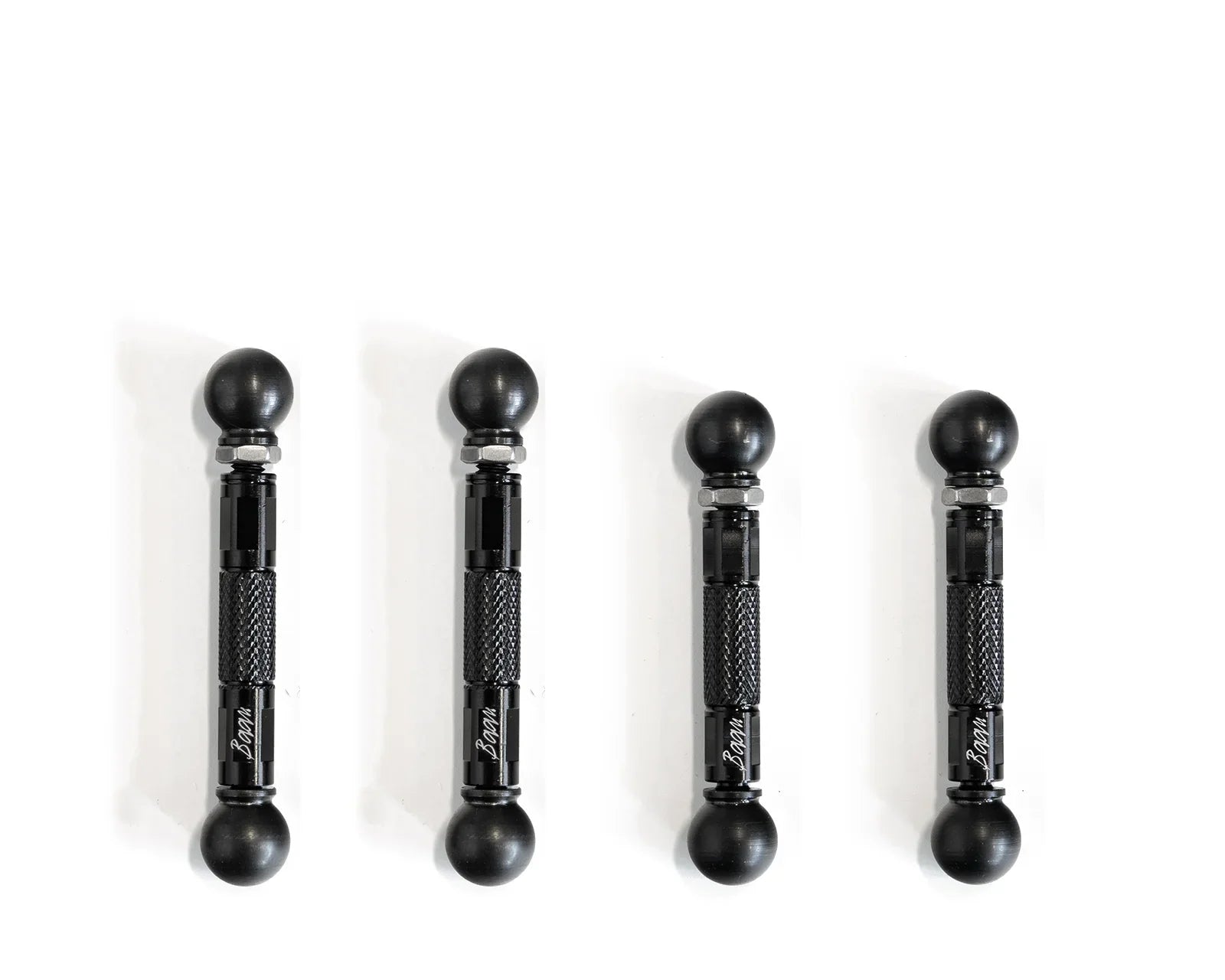

- Front axle adjustable sensor links
- Rear axle adjustable sensor links
- Preassembled connection sockets and safety clips
- Adjustment and installation information
Installation, settling and alignment
Fitment is mechanically straightforward, but careful measurement is essential. An experienced workshop should allow 60–90 minutes for installation, adjustment and a final inspection of the clips, clearances and sensor-arm movement.
The final setup should be checked in the normal road mode and with normal tyre pressures. Reinspect the lock nuts and safety clips after the first period of use.
Ghost RR04 lowering-link FAQ
How much can the vehicle be lowered?
The kit provides an adjustment range from close to the factory position to approximately 50 mm lower at the front and rear. The usable setting depends on clearance, calibration and road conditions.
Are the links suitable for winter use?
The link ends and sockets are made from corrosion-resistant stainless steel. Periodic cleaning and inspection remain advisable after heavy salt exposure.
Do I need an electronic controller?
No. The adjustable links change the sensor reference directly and do not add a controller to the suspension wiring.
Is the adjustment front and rear independent?
Yes. Front and rear settings can be selected separately to achieve the required visual balance.
What should be checked after installation?
Confirm even ride height, sensor-link clearance, retaining-clip engagement, tyre clearance and wheel alignment.
BaanVelgen supply and support
BaanVelgen supplies the Ghost RR04 kit worldwide and provides fitment support before and after purchase. The product is developed in Rotterdam and precision-manufactured in Taiwan to BaanVelgen specifications.
