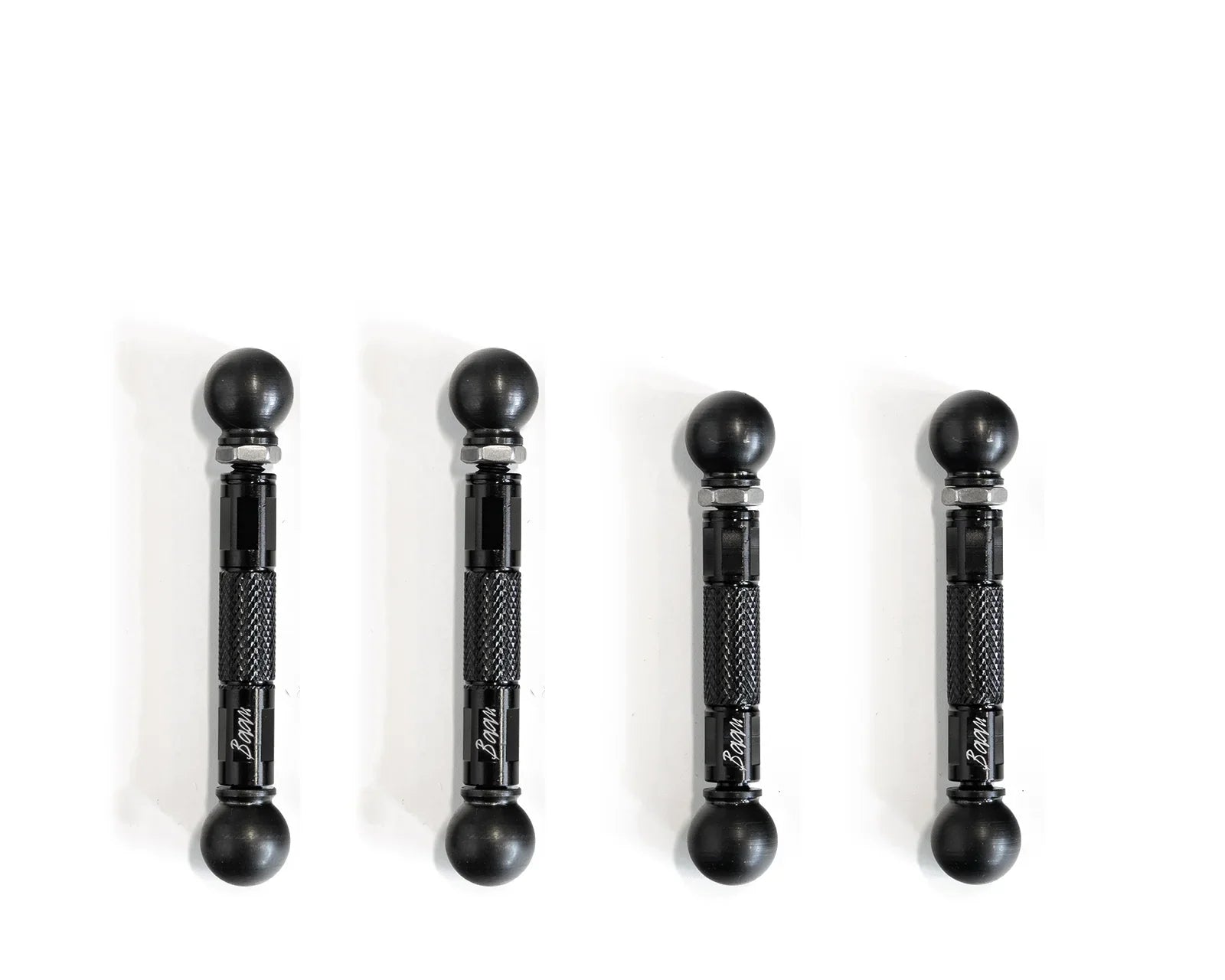

BAAN Air Suspension Lowering Links for Rolls-Royce Phantom VII

BAAN Air Suspension Lowering Links for Rolls-Royce Phantom VII are a model-specific mechanical lowering solution for the Rolls-Royce Phantom VII equipped with factory air suspension.

BAAN Lowering Links provide the Rolls-Royce Phantom VII with a direct mechanical route to a lower static position. They are particularly suitable when the intention is to bring the tall formal body into a more contemporary wheel-to-arch proportion without a permanent suspension conversion.

Product overview

• Model-specific starting dimensions rather than a universal one-size-fits-all link.
• Independent axle setup for a balanced front-to-rear stance.
• Precision-machined construction with critical dimensions checked using 0.001 mm-resolution measuring equipment.
• Direct sensor-ball fitment with stainless-steel sockets and safety-retaining clips.
• Mechanical, reversible operation without adding a signal-interception module.

Because the adjustment remains mechanical, the installation does not introduce an additional control unit into the vehicle wiring. This is especially useful on a classic flagship luxury saloon where owners want the visual result without changing the original suspension architecture.

Technical data for the Phantom VII

Production dimensions are checked with precision equipment with a display resolution of 0.001 mm.

Adjusting front and rear ride height

Ride height is continuously adjustable rather than limited to a fixed drop. The normal working range is from close to the original setting to approximately 50 mm lower on the front and rear axles.

The selected stance should be based on real measurements after the air suspension has settled in its normal road mode.

Operating principle

The product works at the point where suspension movement is translated into sensor movement. By recalibrating that relationship mechanically, the Phantom VII can sit lower while continuing to use its standard suspension interface and self-levelling logic.

What arrives in the box?

You receive a complete model-specific kit for both axles. No separate electronic controller is needed. Reuse of the original sensor balls is part of the direct-fit installation.

Fitment requirements

This product is intended for the following application when equipped with factory air suspension:

• Phantom VII

Suspension specifications can vary by market, model year and optional equipment. Send BaanVelgen the VIN when confirmation is required before ordering.

Correct installation procedure

Installation normally takes approximately 60–90 minutes for an experienced technician. Measure the original ride height before starting, adjust both sides in equal increments and secure every locking nut and retaining clip before the vehicle is lowered from the lift.

For vehicles with large aftermarket wheels, also check inner tyre clearance at steering lock and under compression before selecting the final height.

Common questions

Is this a fixed lowering kit?

No. The final height can be fine-tuned through the threaded centre adjusters.

Can the car still self-level?

The factory self-levelling system remains in use. The links simply establish a lower mechanical reference position.

Will lowering change the ride?

A modest change generally retains the character of the factory system, but a larger drop reduces available suspension travel and may make the vehicle feel firmer.

Can a workshop install the kit?

Yes. The kit can be installed by a qualified workshop using normal hand tools and the supplied baseline guidance.

Is fitment reversible?

Yes. No permanent change to the suspension electronics is required, and the original links can be refitted.

BAAN Lowering Links

BaanVelgen supplies the Phantom VII kit worldwide and provides fitment support before and after purchase. The product is developed in Rotterdam and precision-manufactured in Taiwan to BaanVelgen specifications.
